Regular price $17.00
Liquid error (line 134): Could not find asset snippets/icon-error.liquid translation missing: en.products.product.quantity_minimum_message
QTY Discount
1-3 $17
4-5 $15.3
6-10 $14.45
11+ $11.9



MADE WITH PICO

PICO

The World's Smallest
Arduino Compatible Board

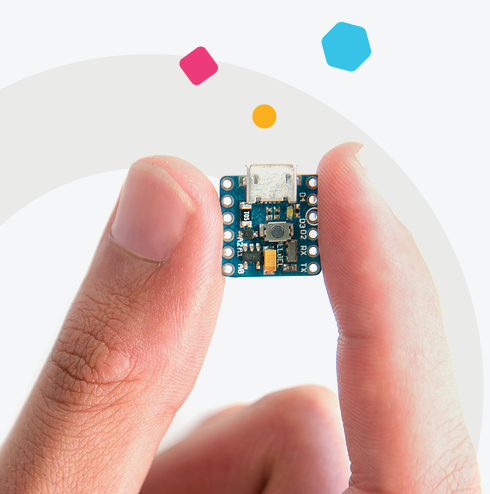

PICO is the development board that you'll use whenever you work on a project where size and flexibility matter. It’s based on the ATmega32u4 microcontroller. It has 5 I/O pins, 3 analog inputs, and 3 SPI enabled pads on the bottom side of the board. But, what makes it really special is the 0.6”x0.6” size and 1.1g weight, which let you make everything around you function and look better, without a bulky board in the way.

PICO

The World's Smallest
Arduino Compatible Board

PICO is the development board that you'll use whenever you work on a project where size and flexibility matter. It’s based on the ATmega32u4 microcontroller. It has 5 I/O pins, 3 analog inputs, and 3 SPI enabled pads on the bottom side of the board. But, what makes it really special is the 0.6”x0.6” size and 1.1g weight, which let you make everything around you function and look better, without a bulky board in the way.

Work with No Size Limitations

pico small size

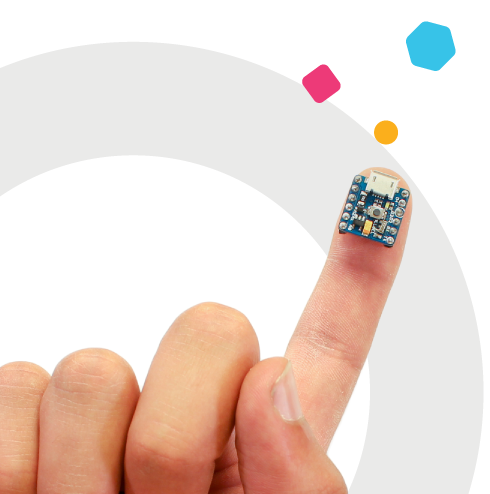

0.6” x 0.6” Size

Eliminate the limitations caused
by size and flexibility

pico native usb support

Native USB Support

Connect your PC using the very
popular USB micro

pico standard pin headers

Standard Pin Headers

Standard pin headers make it
easy to use breadboards

pico preflashed bootloader

Preflashed Bootloader

PICO is ready to rock, straight
out of the box

pico spi pin outs

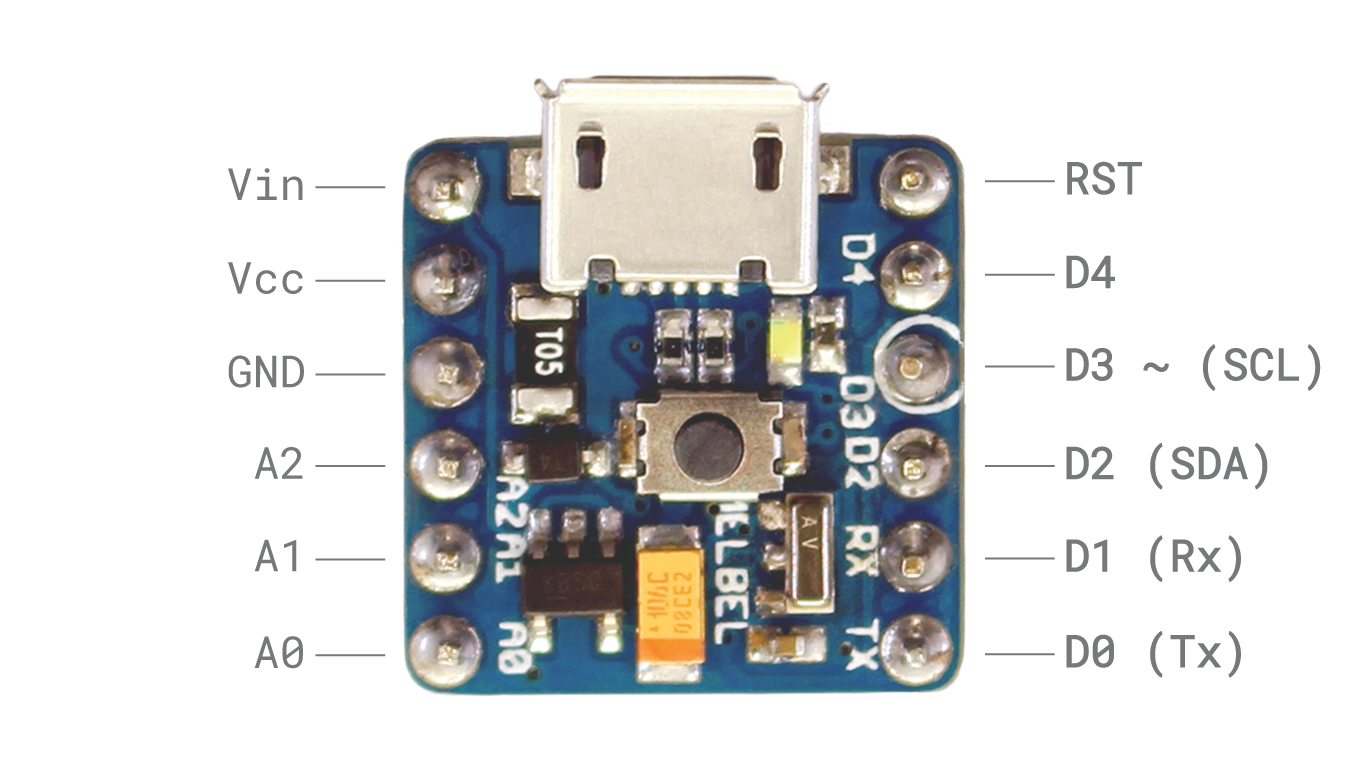

SPI Pin-Outs

Have extra bootloader
customization potential

pico clothing compatible

Clothing Compatible

Have the ability to attach it
to anything, including clothes

Technical Details

Size:0.6" x 0.6"
Reset enable:1 pin/button
Weight:1.1 gramsMicrocontroller:ATmega32u4
Digital I/O pins:8Operating voltage:5 V
PWM channels:1Input voltage:7-12 V
Analog input channels:3Bootloader:Leonardo compatible
DC current per I/O pin:40 mAFlash memory:32KB (ATmega32u4) 4KB which are used by the bootloader
SRAM:2.5 (ATmega32u4)Clock speed:16 MHz
Size:0.6" x 0.6"
Weight:1.1 grams
Digital I/O pins:8
PWM channels:1
Analog input channels:3
DC current per I/O pin:40 mA
SRAM:2.5 (ATmega32u4)
Reset enable:1 pin/button
Microcontroller:ATmega32u4
Operating voltage:5 V
Input voltage:7-12 V
Bootloader:Leonardo compatible
Flash memory:32KB (ATmega32u4) 4KB which are used by the bootloader
Clock speed:16 MHz

Are you ready to build your next project?
