MEET the NEW PICO
The Smallest Arduino
Compatible Board Just Got Better

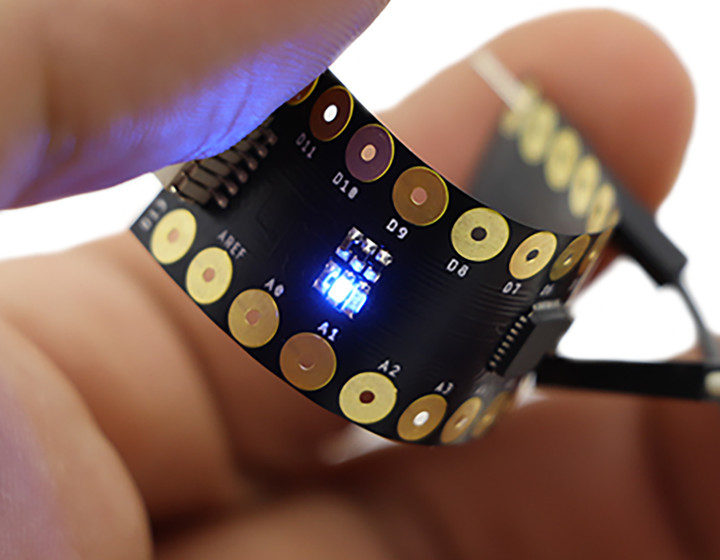

A Lot of Power in a Compact Package
PICO comes in a tiny 0.6" x 0.6" inches package, making it perfect for projects where size and weight matter. But, that's not all, as it now has 12 digital and 5 analog I/O pins, and still supports native USB in its tiny package. Also, you will be able to use the SPI pads to modify the firmware you want to PICO, and modify it your self to achieve complete freedom while using it. Making it the perfect development board to use in portable, tiny, and wearable projects.
Work with No Size Limitations
0.6” x 0.6” Size
Eliminate the limitations caused
by size and flexibility
Native USB Support
Connect your PC using the very
popular USB micro
Standard Pin Headers
Standard pin headers make it
easy to use breadboards
Preflashed Bootloader
PICO is ready to rock, straight
out of the box
SPI Pin-Outs
Have extra bootloader
customization potential
Clothing Compatible
Have the ability to attach it
to anything, including clothes
Let's Talk About Size
MADE WITH PICO

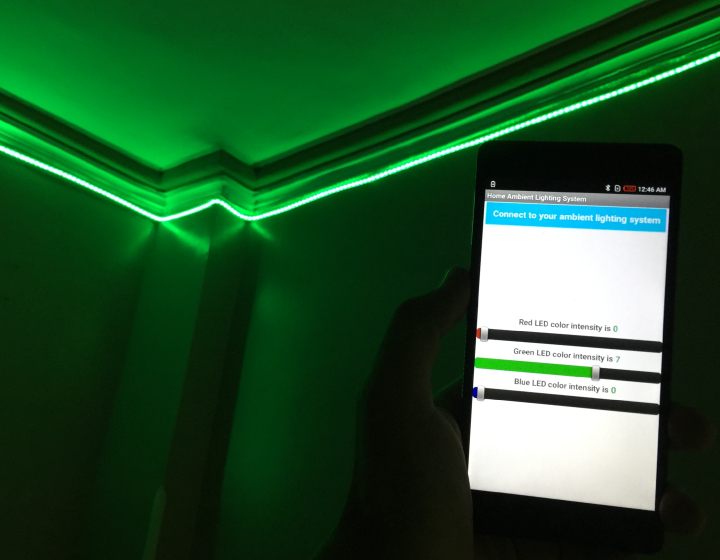

Home Ambient Lighting
In this project we are going to use PICO to create an ambient light that you can put anywhere in your house, and control using your phone. It uses PICO,...
Read more
RGB Thermometer Using PICO
You will be creating an automated thermometer that changes its color depending on the temperature around it. It will be using a temperature sensor to read the surrounding temperature, and...
Read more
Smart Home Lighting
Learn how to create a light system that automatically turns on or off, depending on the lighting conditions around it by using an LDR. You will learn how to work...
Read more
Digital Hourglass Using PICO
We all have started working on a project for an hour, only to end up working on it for 3 hours unknowingly. And today, we're going to fix this problem,...
Read moreAre you ready to create something?
Technical Details
| Size | 0.6" x 0.6 |
|---|---|
| Weight | 1 Gram |
| Digital I/O Pins | 12 |
| PWM Channels | 4 |
| Analog I/O Pins | 4 |
| DC Current per I/O Pin | 20 mA |
| SRAM | 2.5 (ATmega32u4) |
| Reset Enabled | 1 pin/button
|
| Microcontroller | ATmega32u4
|
| Operating Voltage | 5 V
|
| Input Voltage | 7-12 V
|
| Bootloader | Arduino Leonardo
|
| Flash Memory | 32KB (ATmega32u4) 4KB which
are used by the bootloader |
| Clock Speed | 16 MHz
|
| Size: | 0.6" x 0.6" | Reset Enable: | 1 pin/button |
| Weight: | 1 Gram | Microcontroller: | ATmega32u4 |
| Digital I/O Pins: | 12 | Operating Voltage: | 5 V |
| PWM Channels: | 4 | Input Voltage: | 7-12 V |
| Analog Input Channels: | 4 | Bootloader: | Arduino Leonardo |
| DC Current per I/O Pin: | 20 mA | Flash Memory: | 32KB (ATmega32u4) 4KB which are used by the bootloader |
| SRAM: | 2.5 (ATmega32u4) | Clock Speed: | 16 MHz |
PICO's Pin-outs
